Why Some Homes in Alpine Still Struggle With Heat Loss Without Mineral Wool Insulation?
Homes in Alpine continue to lose significant heat during the winter months because many were built with traditional fiberglass batts…
Mineral wool insulation improves fire resistance and safety because it is naturally noncombustible, can withstand temperatures exceeding 2,000 degrees Fahrenheit, and does not produce toxic smoke or harmful gases when exposed to fire. Made primarily from basalt rock and slag, mineral wool acts as a passive fire protection system that slows flame spread, blocks heat transfer through walls and ceilings, and provides critical time for occupants to evacuate and firefighters to respond. Unlike organic insulation materials that can fuel a fire, mineral wool remains structurally intact during fire events, making it one of the safest insulation choices for both residential and commercial buildings. For a deeper understanding of insulation performance and material selection, explore our complete Mineral Wool insulation guide.
Mineral wool, also known as stone wool or rock wool, is manufactured by melting basalt rock and recycled slag at temperatures around 1,600 degrees Celsius, then spinning the molten material into fine fibers. The raw materials themselves are inherently inorganic and noncombustible, which means the finished product cannot catch fire, burn, or contribute fuel to a growing blaze. Learn more about mineral wool insulation.
According to ROCKWOOL, the primary ingredients in stone wool are naturally noncombustible, and when used in fire-rated wall and roof assemblies alongside combustible materials, the insulation contributes passive fire protection that improves the overall fire performance of homes, apartment buildings, office complexes, and shopping centers.
The fire resistance of mineral wool comes down to three physical properties:
The Insulation Institute, the educational arm of the North American Insulation Manufacturers Association (NAIMA), confirms that fiberglass and mineral wool insulation materials are noncombustible and remain so for the life of the product without requiring additional fire-retardant chemical treatments.
Understanding how mineral wool performs under standardized testing helps contractors and builders make informed specification decisions. The two most referenced test methods are ASTM E84 and ASTM E119.
ASTM E84, also known as the Steiner tunnel test, measures two values: flame spread index (FSI) and smoke development index (SDI). Mineral wool consistently earns a Class A rating, the highest possible classification, with an FSI of 0 to 25 and an SDI of 50 or less. For comparison, untreated wood has an FSI of 100 to 200. A Class A rating means the material contributes virtually nothing to flame spread across a surface.
ASTM E119 tests full wall, floor, and ceiling assemblies for their ability to resist fire exposure for a designated period. Mineral wool wall assemblies have been third-party tested to achieve fire-resistance ratings of 1 hour and 2 hours, depending on the specific assembly configuration, density, and thickness of the insulation. Some mineral wool systems have demonstrated the ability to remain intact at temperatures above 2,000 degrees Fahrenheit with 2 to 3 hour fire-resistance ratings.
| Insulation Type | Combustible? | ASTM E84 Class | Max Fire-Resistance Rating | Produces Toxic Smoke? |
|---|---|---|---|---|
| Mineral Wool (Stone Wool) | No | Class A | 2 to 3 hours | No |
| Fiberglass (unfaced) | No | Class A | 1 to 2 hours | Minimal |
| Fiberglass (kraft-faced) | Facing is combustible | Class A (unfaced) | Varies by assembly | Facing may produce smoke |
| Cellulose | Yes | Class A (treated) | Limited | Yes, when fire-retardant degrades |
| Spray Foam | Yes | Varies (Class B or lower) | Poor | Yes, significant toxic fumes |

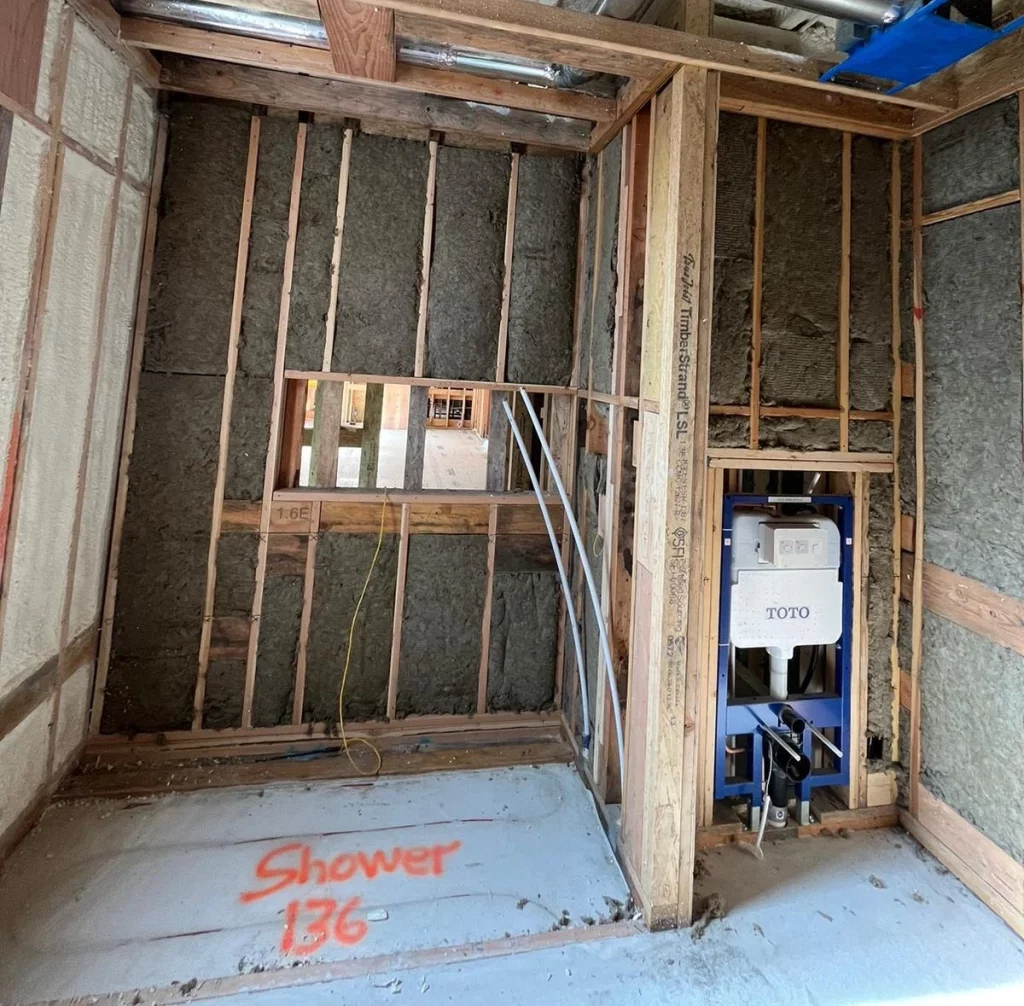

Passive fire protection refers to built-in design elements that contain fire and slow its spread without requiring activation, unlike sprinkler systems or alarms. Eurima, the European insulation manufacturers association, notes that mineral wool insulation contributes to safer buildings by delaying fire spread, acting as a fire barrier, slowing down fires, and giving emergency services extra time to reach buildings.
Mineral wool provides passive fire protection through several mechanisms:
Compartmentalization: When installed in wall cavities, floor assemblies, and ceiling systems, mineral wool creates fire-resistance-rated barriers that divide a building into separate compartments. This containment limits fire to the room or area of origin and prevents it from spreading to adjacent spaces.
Structural protection: Mineral wool sheaths steel columns, beams, and girders, delaying the temperature rise that causes structural steel to lose load-bearing capacity. In a typical structure fire, unprotected steel can fail in as little as 15 to 20 minutes. Mineral wool wraps can extend that time significantly.
Concealed space protection: The Insulation Institute points out that filling voids and concealed spaces with mineral wool helps block fire and smoke from spreading through cavities where flames might otherwise travel undetected. NFPA 13, the standard for sprinkler system installation, even recognizes this and allows sprinkler heads to be omitted in concealed spaces filled with noncombustible insulation when certain requirements are met.
Exterior wall protection: Mineral wool used as continuous exterior insulation on building facades helps meet NFPA 285 requirements, the fire test standard for exterior wall assemblies. It prevents fire from climbing the outside of a building, a dangerous phenomenon often seen in multi-story construction.
The following scenarios illustrate how mineral wool insulation performs in practical building situations.
| Scenario | Building Type | Fire Safety Challenge | Mineral Wool Solution | Outcome |
|---|---|---|---|---|
| Multi-family apartment complex | 5-story wood frame | Fire spread through concealed wall cavities between units | 2-hour mineral wool fire-rated partition walls between dwelling units | Fire contained to single unit; no structural collapse; occupants in adjacent units evacuated safely |
| Commercial office renovation | 3-story commercial retrofit | Existing walls lacked fire-rating compliance with updated IBC | Mineral wool batts installed in existing stud cavities with gypsum overlay to achieve 1-hour rating | Building brought to current fire code compliance without full wall reconstruction |
| Warehouse partition | Industrial warehouse | Need for fire separation between storage and office areas | High-density mineral wool boards in steel stud partition | 2-hour fire barrier achieved; reduced insurance premiums by 15% |
| Single-family home in WUI zone | Residential, wildland-urban interface | Exterior wildfire exposure and ember intrusion | Mineral wool continuous insulation under fiber cement siding | No fire penetration through exterior wall assembly during nearby wildfire event |
| School gymnasium ceiling | Educational facility | Large open ceiling cavity with limited access for sprinklers | Mineral wool batts friction-fit between ceiling joists to fill concealed space | Met NFPA 13 concealed space exemption; sprinklers omitted in ceiling cavity |
Not all mineral wool installations deliver the same fire protection. Several variables influence how well the material performs under fire conditions.
Density and thickness: Higher-density mineral wool (typically 8 to 12 pounds per cubic foot) provides better fire resistance than lower-density products. Thicker installations also yield longer fire-resistance ratings. Specifying the correct density for the intended fire-rating assembly is critical.
Installation quality: Gaps, voids, and compression during installation compromise fire performance. A mineral wool batt that is compressed into a 3-inch cavity designed for 3.5-inch insulation loses both thermal and fire-resistance effectiveness. Proper friction-fit installation with no gaps around pipes, electrical boxes, and other penetrations is essential.
Assembly design: Mineral wool alone does not create a fire-resistance rating. It must be part of a tested assembly that includes gypsum board, fastener patterns, joint treatment, and other components as specified in UL or Intertek listings. Substituting materials or altering the assembly can void the fire rating.
Facing materials: While unfaced mineral wool is noncombustible, facings such as kraft paper, foil, or vinyl are combustible. In fire-rated assemblies, facings must be installed in the correct orientation and may need to be covered by a thermal barrier.
Firestop systems: Penetrations through fire-resistance-rated walls and floors require listed firestop systems. Mineral wool is commonly used as the backing material in firestop applications, but the complete system, including sealants and intumescent devices, must be installed per the manufacturer’s listing.
Building codes in the United States increasingly recognize mineral wool as a preferred material for fire-resistance-rated construction. The International Code Council describes how the International Building Code (IBC) Section 721 includes prescriptive fire resistance requirements for wall assemblies, floor/ceiling assemblies, and roof/ceiling assemblies. Mineral wool is listed in the fire-resistance design tables within the IBC as an accepted component for achieving these ratings.
Key codes and standards include:
Johns Manville, a major insulation manufacturer, notes that mineral fiber insulations like fiberglass and mineral wool are noncombustible and have melting points significantly above the temperatures encountered in most 1-hour rated fire assemblies, making them reliable performers in code-compliant construction.
Contractors who specify and install mineral wool can take specific steps to maximize fire protection on every project.
While fire resistance is a major reason to choose mineral wool, the material offers additional benefits that support overall building safety and performance. Mineral wool provides high sound absorption, making it effective for reducing noise transmission between rooms and units. It also has a higher R-value per inch than fiberglass (typically R-3.3 to R-4.2 per inch compared to R-2.9 to R-3.8 for fiberglass), meaning better thermal performance in thinner wall assemblies. Mineral wool is also moisture-resistant and does not support mold growth, which contributes to long-term indoor air quality and structural durability.
These combined benefits make mineral wool a practical choice for buildings where fire safety, energy efficiency, acoustic comfort, and moisture management all matter.
Choosing the right insulation for fire safety involves more than picking a product off the shelf. It requires matching the correct mineral wool specification to the right assembly, installing it properly, and ensuring every detail meets code. Our team at High Country Solutions has the experience and knowledge to help you specify and install mineral wool insulation that delivers the fire protection your project demands. Whether you are building new, retrofitting an existing structure, or upgrading to meet updated fire codes, we are here to help.
Request a Free Quote: [email protected] or call (307) 248-9063
Reach out today. The right insulation specification can mean the difference between a contained fire and a catastrophic loss.
No, mineral wool is naturally noncombustible. It will not ignite, burn, or contribute fuel to a fire at any temperature encountered in a building fire. It can withstand temperatures above 1,000 degrees Celsius without melting.
Mineral wool does not replace active fire suppression systems in most commercial buildings. However, it can allow sprinklers to be omitted in specific concealed spaces when installed according to NFPA 13 requirements.
Mineral wool is significantly safer. Spray foam is combustible and begins to break down at approximately 700 degrees Fahrenheit, releasing toxic fumes. Mineral wool remains noncombustible and does not produce harmful smoke or gases.
Faced mineral wool can be used, but the combustible facing must be covered by an approved thermal barrier such as gypsum board. Unfaced mineral wool is the preferred choice when fire resistance is the primary design objective.
Properly specified and installed mineral wool wall assemblies have been tested and listed to achieve 1-hour and 2-hour fire-resistance ratings, with some systems demonstrating performance up to 3 hours depending on the assembly configuration.
