Determining if closed-cell spray foam installation is the right choice for a building often comes down to three primary indicators: high, unexplained energy consumption, persistent moisture accumulation or mold growth in specific areas, and the need for structural reinforcement in unconditioned spaces. Unlike softer insulation materials, closed-cell foam provides a rigid air barrier, vapor barrier, and thermal barrier all at once. If a home suffers from severe air leakage, wet crawl spaces, or requires maximum R-value in a compact cavity, this dense material is typically the most effective solution.
High energy bills that don’t seem to correlate with changing utility rates are the most obvious sign that your home’s thermal defense is compromised. Traditional insulation, like fiberglass batts, can settle, allowing conditioned air to escape and unconditioned air to infiltrate, particularly in hard-to-reach areas. Drafts felt near windows, outlets, or baseboards are direct evidence of this air exchange.
This continuous air exchange is financially significant: Studies have shown that air leakage often accounts for between 25% and 40% of the energy used for heating and cooling in a typical home, according to the Department of Energy data. When addressing this level of leakage, applying closed-cell foam creates a complete seal, adhering directly to the substrate and blocking airflow permanently. If homeowners have attempted sealing drafts with caulk or weather stripping without success, the problem likely originates within the walls, rim joists, or attic structure, requiring a comprehensive air barrier solution.
Bonus Tip: Use an infrared camera during a cold or hot day to quickly visualize where the thermal envelope is weakest. Cold blue or hot red spots indicate significant air gaps or areas lacking sufficient thermal resistance.
Moisture management is one of the chief reasons homeowners turn to closed-cell foam. Because the foam consists of tiny, dense cells sealed off from one another, it inherently resists water absorption and acts as a strong vapor barrier. This feature is particularly important in regions with cold climates, where vapor drive (the movement of moisture through building materials) can lead to condensation inside wall cavities and subsequent rot or mold growth.
In areas prone to dampness, such as crawl spaces or basement walls, traditional porous insulation fails quickly when exposed to humidity, rapidly reducing its R-value and providing a food source for mildew. Closed-cell foam solves this issue because its sealed, dense structure prevents water vapor from penetrating the insulation layer entirely. The Federal Emergency Management Agency (FEMA) has recognized the material’s superior flood and moisture resistance, suggesting its use in flood-prone areas due to its density and closed nature, reports the U.S. General Services Administration in its guidance on building resilience.
Furthermore, the rigidity of the cured foam adds minor racking strength to light-frame structures. While it shouldn’t replace structural components, its adhesive nature and density can stabilize weakened or older assemblies, providing additional stiffness to sheathing and rim joists.
Certain parts of a home benefit disproportionately from closed-cell foam compared to alternatives. These are usually areas where space is limited, moisture is likely, or where maximum air sealing is critical.
Crawl spaces, whether vented or unvented, are notorious sources of moisture and poor air quality. Sealing the perimeter walls of an unvented crawl space with closed-cell foam prevents external air infiltration and limits soil moisture transmission. This application transforms a damp, neglected area into a conditioned space, protecting HVAC systems and ductwork installed there.
The rim joist area, located where the foundation meets the wood framing, is one of the biggest sources of air leaks in any house. Because the cavity is often shallow and filled with framing obstructions, traditional batt insulation is difficult to install correctly. Experts in the field agree that closed-cell foam is ideal here because it expands into the tight, uneven space, fully sealing the rim joist and providing an R-value of R-6 to R-7 per inch, making it highly effective even in limited depth.
The following table illustrates why closed-cell foam is often preferred over open-cell foam for specific, demanding applications:
| Feature | Closed Cell Spray Foam | Open Cell Spray Foam |
|---|---|---|
| Density | 1.75 – 2.25 lbs/ft³ (Rigid) | 0.4 – 0.6 lbs/ft³ (Spongy) |
| R-Value per Inch | R-6.5 to R-7.0 | R-3.5 to R-3.9 |
| Air Barrier Function | Excellent | Excellent |
| Vapor Barrier Function | Perm rating below 1.0 (Vapor Retarder) | Perm rating above 10 (Non-Vapor Retarder) |
| Water Resistance | High (Hydrophobic) | Low (Absorbs Water) |
| Best Use Cases | Exterior walls, crawl spaces, roofs, and flood zones | Interior walls, sound-dampening, attics (non-moisture-critical) |
For homes located in extreme environments, such as those that experience intense cold and high wind loads, achieving the necessary R-value in standard wall cavities requires a dense material. Building codes mandate specific R-values based on location, known as climate zones. For instance, northern regions (Zones 5, 6, and 7) require higher R-values for effective thermal performance, often R-20 or more for wall assemblies, according to guidance from the International Residential Code (IRC).
Closed-cell foam minimizes the necessary thickness of the insulation layer to meet these stringent requirements. If wall studs are only 3.5 inches deep (standard 2×4 construction), using a material that delivers R-6.5 per inch allows the home to achieve R-22.75 in that shallow space, a feat impossible with standard materials.

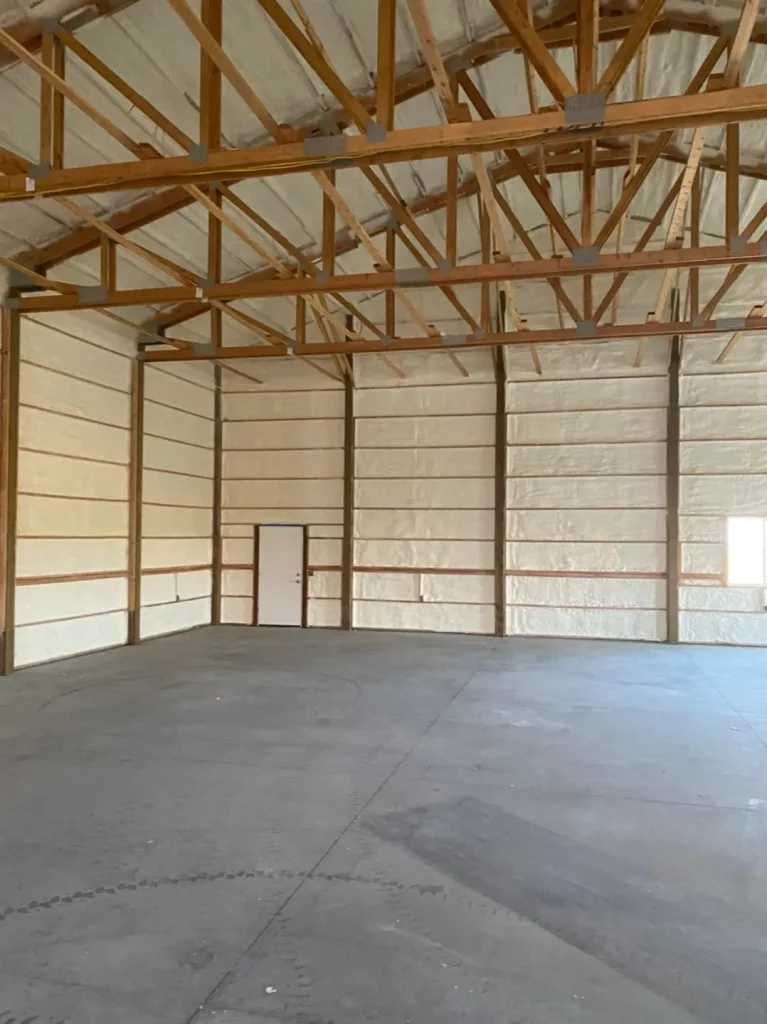

Bonus Tip: When insulating metal buildings or barns, closed-cell foam is strongly recommended. Metal structures transfer heat rapidly and are highly prone to condensation; the foam’s dual action as a thermal break and vapor barrier is essential for preventing interior rain and corrosion.
Before deciding on closed-cell spray foam, several practical and logistical factors should be addressed. The preparation phase for this type of application is critical and often requires temporary displacement.
Closed-cell foam dramatically increases airtightness because it expands and hardens, creating a monolithic seal that adheres to the framing and sheathing. This eliminates the small gaps and seams that allow air infiltration, which is critical for reducing convective heat loss.
Yes, the density and structure of cured closed-cell foam provide no food source or nesting material for insects or rodents. While it is not a pesticide, its rigidity and lack of air pockets make it extremely difficult for pests to bore into or establish habitats within the material.
Using closed-cell foam directly on the underside of the roof deck (sheathing) is a common and effective application. It seals the attic from the exterior, bringing the attic space into the conditioned envelope. This prevents ice damming and protects the roof structure from excessive heat transfer.
Unlike open-cell foam or fiberglass, closed-cell foam does not absorb significant amounts of water. If exposed to flooding or moisture, the water beads off the dense material. Once the exterior source of the moisture is removed, the foam retains its R-value and structural integrity.
Evaluating whether a home requires the specific properties of closed-cell spray foam means looking beyond immediate cost. It involves assessing persistent problems like excessive moisture, air leakage, and the failure of existing materials in challenging spaces like rim joists or crawl spaces. Prioritizing efficiency and durability means choosing materials that stand up to regional climate demands and specific building challenges. Homeowners should consider their long-term goals for thermal performance, air quality, and maintenance before making an insulation decision.
